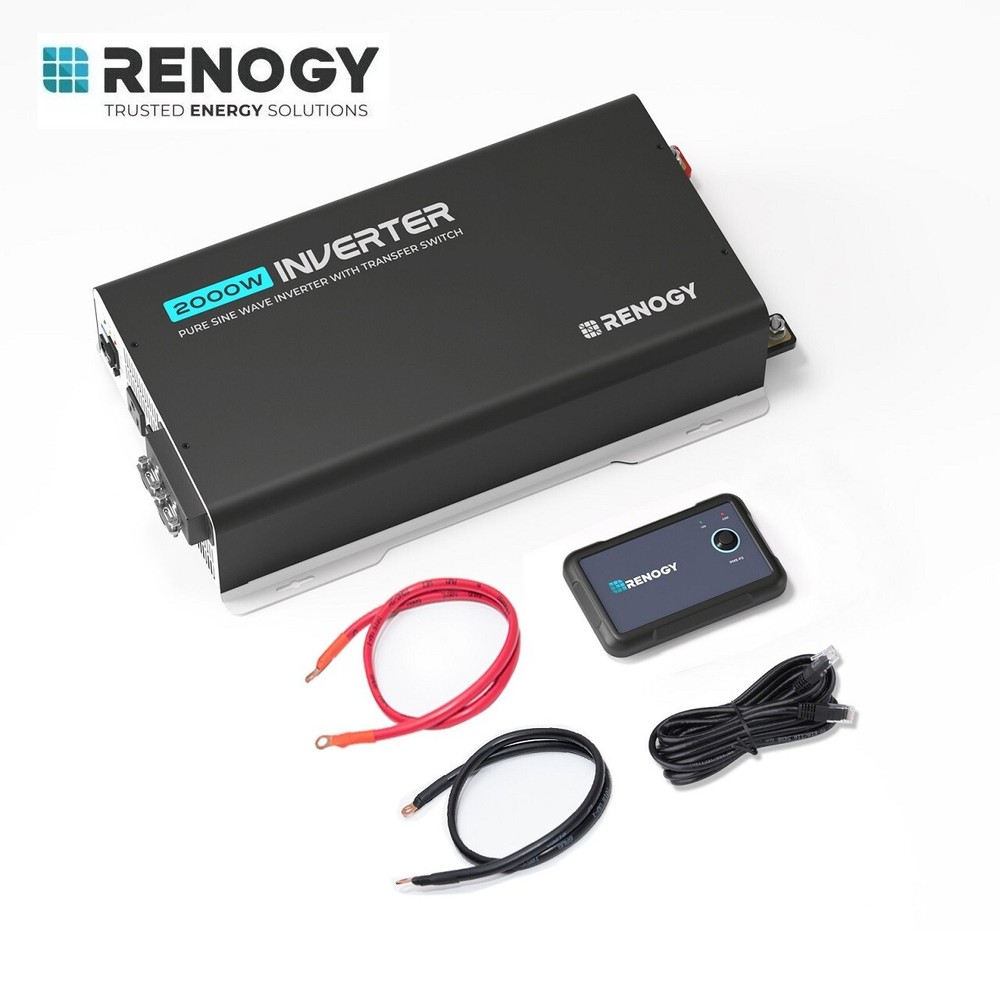

Renogy 2000W 12V Pure Sine Wave Inverter W/ UPS Transfer Switch and Built-in BT

Renogy 2000W 12V Pure Sine Wave Inverter W/ UPS Transfer Switch and Built-in BT

USD 351.49 USD

SKU: 9zPtB1x2

Brand: Renogy

MPN: RIV1220PU-126-US

GTIN: Does not apply

Condition: New

Tags: 1.5A 10.5VDC±0.3VDC 11-15.5VDC 11.0VDC±0.3VDC 12 V 120V AC±3% 12VDC 16.0VDC±0.3VDC 16.40ft 16.6A AC 18W 2000-2499 W 2000W 20A 210A 4000W (@ 2s) 5.8kg/12.8lb 50/60Hz 87% 92% Ac/dc Battery-Based Charger/Inverter IP20 M8-25 Max 95%, Non-condensing Off-Grid Pure Sine Wave Renogy RIV1220PU-126-US Solar UL458,FCC Prat15 ClassB ≤3%

Categories: Home & Garden

Specifications

Enclosure Rating	IP20
System Configuration	Off-Grid
Power Source	Solar
Wattage	2000-2499 W
MPN	RIV1220PU-126-US
Battery Input Voltage Range	11-15.5VDC
Battery Low Voltage Alarm	11.0VDC±0.3VDC
Total Harmonic Distortion (THD)	≤3%
Current Type	AC/DC
Humidity	Max 95%, Non-condensing
Continuous Output Current	16.6A AC
Rated Battery Input Voltage	12VDC
Power Factor	1.5A
Output Waveform	Pure Sine Wave
Output Frequency	50/60Hz
Regulatory And Safety Specifications	UL458,FCC Prat15 ClassB
Maximum Continuous Battery Output Current	210A
Inverter Technology	Battery-Based
Full Load Efficiency	87%
Weight	5.8kg/12.8lb
Brand	Renogy
Type	Charger/Inverter
Continuous Output Power	2000W
DC Terminals	M8-25
Inverter Efficiency	92%
Wired Length	16.40ft
Surge Rating	4000W (@ 2s)
Transfer Switch Rating	20A
Power Consumption	18W
Output Voltage	120V AC±3%
Battery Overoltage Shutdown	16.0VDC±0.3VDC
Battery Low Voltage Shutdown	10.5VDC±0.3VDC

The Renogy pure sine wave power inverter is an essential component for off-grid systems. The main function of cooling fans in Renogy inverters is to provide sufficient cooling airflow to remove the heat generated within the inverter.
