10 AWG and 12 AWG Solar Panel Extension Cable Wire Connectors PV
Specifications
| Restocking Fee | 20% |
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Windy Nation Inc |

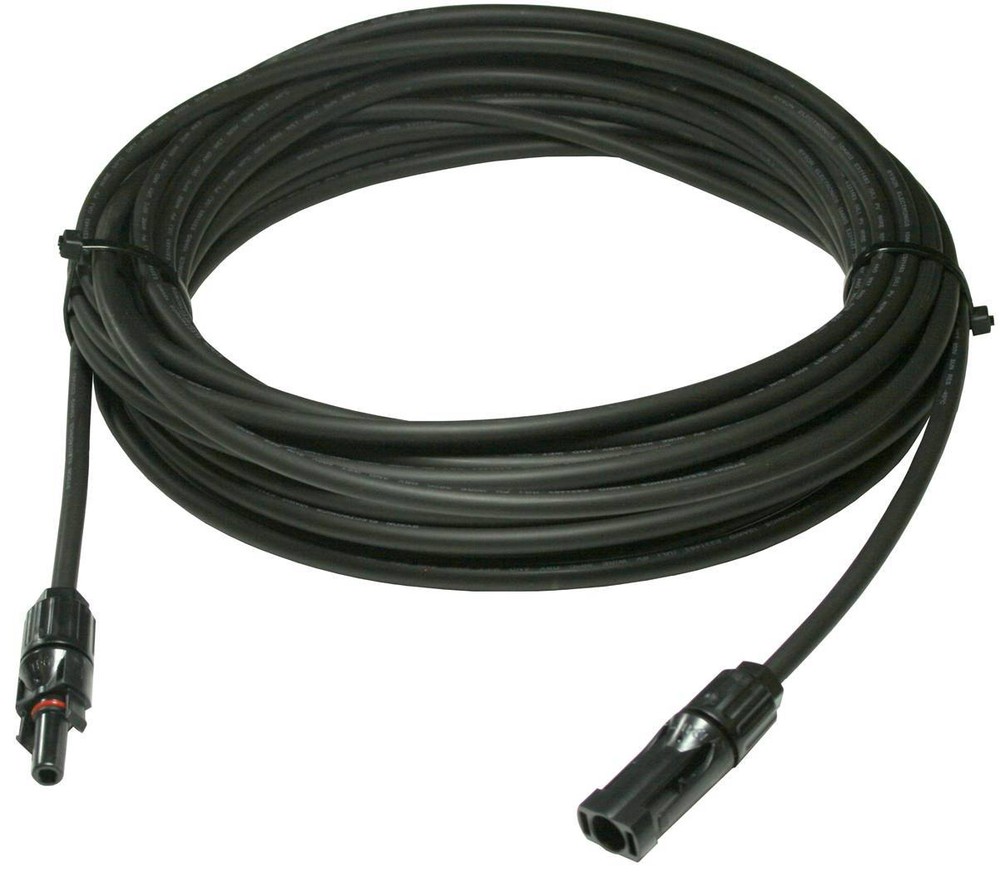

10 AWG or 12 AWG Solar Extension Cable with Connectors Sold in various lengths and package quantities. Simply choose the desired cable size (10 or 12 AWG), cable length, and quantity from the selections above. Solar Cable terminated with a Male Connector and Female Connector10 AWG Solar Cable Technical Specifications:Wire Thickness: 10 AWGStranding: 19Insulation Thickness: 0.075 inchesNominal Outer Diameter: 0.28 inchesApproximate Net Weight : 17.54 ft/lbsAmpacity 90ºC Wet/Dry: 40AConductors: Fully annealed stranded bare copper per ASTM B3. Class B StrandingInsulation Jacket: Chemically crosslinked polyethylene12 AWG Solar Cable Technical Specifications::Wire Thickness: 12 AWG Stranding: 19Insulation Thickness: 0.045 inchesNominal Outer Diameter: 0.188 inches Approximate Net Weight : 30 lbs/1M'Copper Weight : 20.20 lbs/1M'Ampacity 90ºC Wet/Dry: 30AConductors: Fully annealed stranded bare copper per ASTM B3. Class B Stranding Insulation Jacket: Chemically crosslinked polyethylene Industry Standards and Approvals (10 AWG and 12 AWG Cable):UL Listed as XLP USE-2 or RHH/RHW-2 RoHS CompliantWet/Dry Temperature: -40C to 90CSunlight resistantDirect burial
